Zebrix Queue Manager (QMS) Quick User Guide

Zebrix Queue Manager is accessible from any computer (PC/MAC) connected to the internet. The only officially supported browser is Google Chrome, for this reason we recommend using it (you can download it by clicking on this link). You can use another browser, but we cannot guarantee that Queue Manager Zebrix will work perfectly with this one.

For an optimal user experience, we recommend working on a computer with a screen resolution of 1920×1080. However, the Zebrix QMS works perfectly from a resolution of 1368×768. Below this resolution, use is less comfortable or even degraded.

The CMS is not compatible with 19/10 screens and other specific formats.

You can access the Zebrix Queue Manager at the following URL: https://qms.zebrix.net

You will then be able to enter your connection details

• Your customer name
• Your email
• Your password

It is with the QMS application that we control the kiosk terminals. The application allows you to create counters, services and skills. It is with her that we allocate services and skills to the counters and trigger their opening hours.

• The counters are the physical locations towards which the public will go.
• Skills are the know-how of the people behind the counters.
• Services are sets of skills.

We could bring together related skills under a service: for example in a town hall, we could have a civil status service, with skills: passport, identity card, birth certificate, death certificate… We can also configure the opening and closing times of each counter.

The dashboard allows you to consult general information about the interface.

You will need to create at least one service in your QMS interface, the services group together skills linked to the same theme.

The services can be more numerous to create subsets of skills: for example for a town hall we could have a civil status service, with the skills: passport; identity card;… and a second town planning department, with the skills: parking; urbanization project; request for authorization for a crane…

Here's how to create a service: In the topic buttons, click Services, and then press Add.

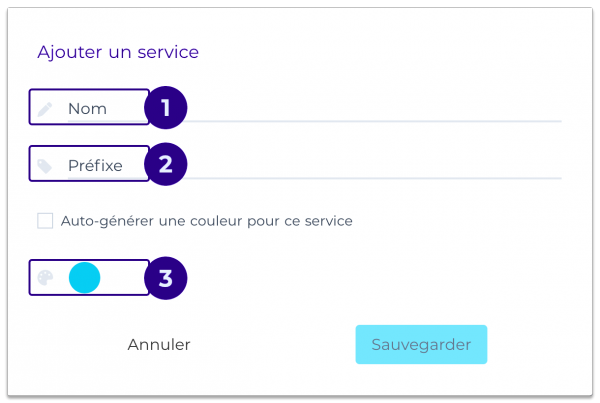

After clicking Add or Edit a service The Add/edit a service pop-up appears:

When you add (or modify) a service, you choose a name, the prefix will be automatic with the first 3 letters of the name then you can choose a color with the color picker or let it determine itself with the box to check auto-generate a color for this service.

Then press save to save your service.

Skills are the skill areas for which it is possible to request a ticket. These skills thus created will be associated with a service and one or more counters.

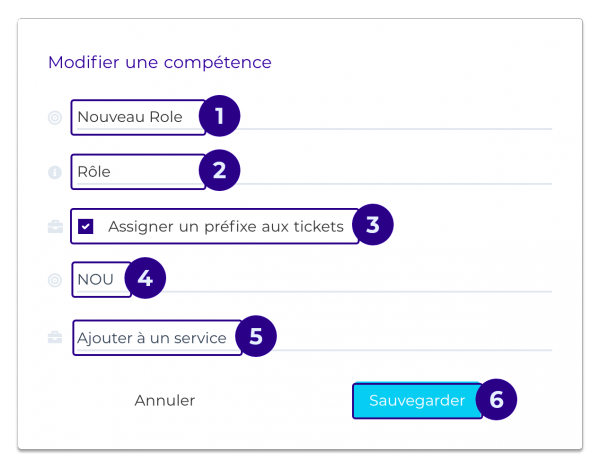

To add a skill, click the Add(2) or edit(5) button on the relevant skill line to modify it. In both cases, you will open a similar pop-up.

To function, your counters need to have a weekly opening time slot.

In the timetables tab, you will be able to configure weekly counter opening times. In addition, you will have the possibility of creating several weekly slots, allowing you to have counters with different opening slots.

Once saved, your opening ranges can be selected from a drop-down list in the window configuration screen.

Here is the procedure to follow to create an opening time slot:

To access this page, first click on the schedules tab button (1) and then, to add a new time slot, click on add (2).

To modify the time slot, click on the modification button (5).

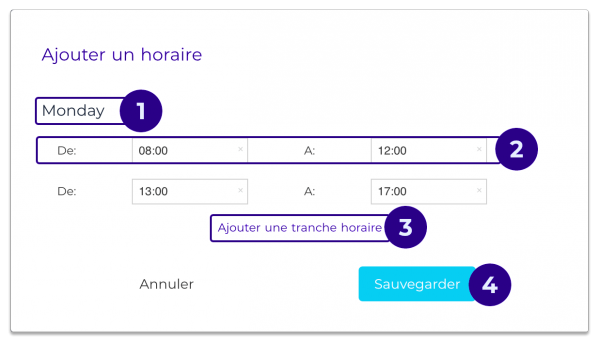

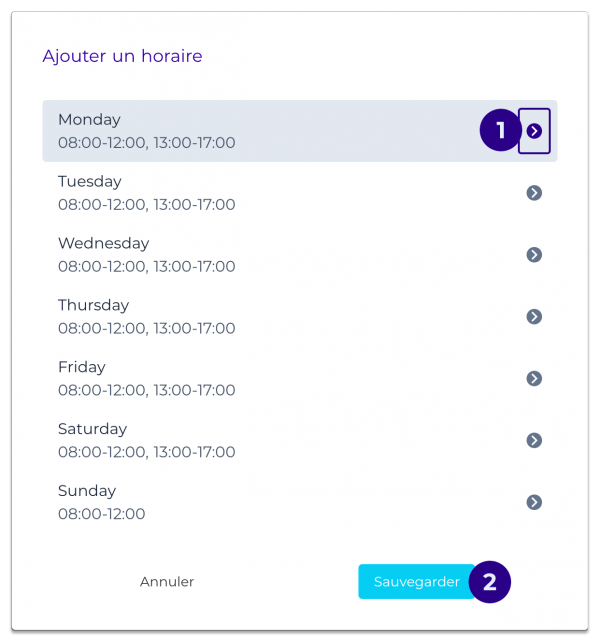

The add/edit time slot pop-up opens and displays the list of days of the week with their opening hours. To modify the schedules for a day, press button (1) for the day concerned. A pop-up then opens to add/modify a schedule for the day

By default, one or two time slots are entered. you can nevertheless modify the times displayed by clicking in the relevant “time” box. If you need to add new times, press the add time slot button. After all changes press Save to save. You can repeat this step for all the days of the week, and end up saving the last pop up as well.

The counters are physical counters capable of handling one or more skills.

Here’s how to create a wicket: First click the ATM button, then click Add.

Description label legend

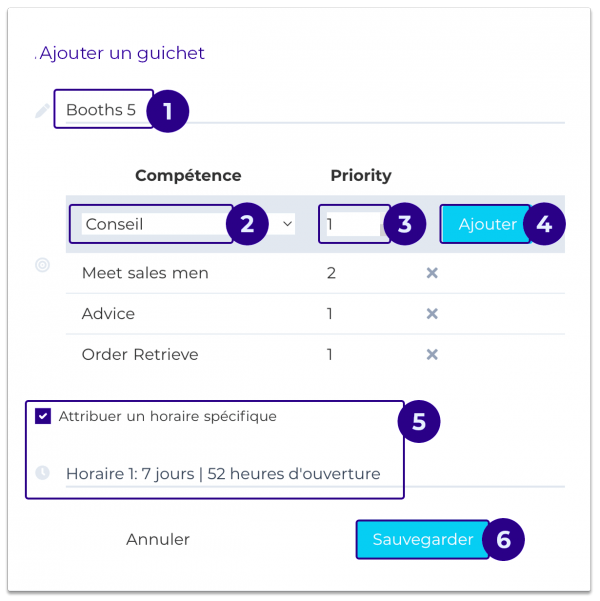

then the pop up add a window opens:

Label legend

Branch name: the choice is free.

Skills processed by the branch: You will only be able to select skills that have already been created in the Skills tab. For each skill entered in the window, you will be able to choose a priority index, which will have the effect of prioritizing the skills: A skill with a priority 1 will be priority over a skill B with a priority 2.

The desired effect of priority skills is to orient the customer according to his needs and to streamline the queue. The priority box ranks the skills in order of importance on this window so a priority 1 will direct the customer on this window (visual 1), a priority 2 will direct the customer on this window in “overflow” another window with the same skill in priority 1 (visual 2).

We advise you to have each skill in priority 1 on at least 1 counter.

We advise you to have each skill in priority 1 on at least 1 counter.

When you have chosen a skill and its priority you can click on add, the skill will be added to the list of skills, to delete a saved skill you can click on the cross of the skill in the list.

Specific branch hours (optional)

You can specify different times for each ticket office, depending on the number of visitors or the number of… But for this you will have to register in advance time slots in the tab hours.

Once you have entered the window settings you can click save.

This screen allows you to manage the options related to the general mode of operation of the QMS, in particular to activate the option to automatically assign tickets as soon as an ATM becomes available. If this option is not checked it is the teller who will give the top at the end of the treatment of the previous customer.

automatically assign tickets to a free desk

The Print menu allows you to specify the type of Kiosk (Samsung Kiosk) and activate or not the printing of a ticket.

In our use, it is necessary to check the following 2 boxes:

When a ticket has been taken from the terminal, it is instantly displayed on a screen facing customers displaying active tickets (which have not yet been processed by the counters). This screen will also show the ticket called by the ticket counter with a ringtone (which you can set up in the screen tab).

Here you can customize the display of this screen:

The widget will be displayed thanks to the url obtained at the bottom of the widget page, which will be copied in a web area of the zebrix page displayed on the screen facing customers with a ticket.

We are talking about placement in the area of the page. position: we can either place our tickets on the left or right side of the zone.

Active tickets are displayed on the screen and can have two states:

• Fixed, when ticket is waiting for ATM.
• Flashing, when the ticket is called through a ticket counter.

In both cases, care must be taken to ensure that the display is clearly legible with a sufficiently large font and contrasting colours between the background and the text.

Background color

1. Base: allows you to choose the background color of a pending ticket.
2. At blinking: allows you to choose the alternate color of flashing background with the base color.

Text colour

1. Base: allows you to choose the text color of a pending ticket.
2. At blinking: allows you to choose the alternate color of the flashing text with the base color.

If you want to keep the same text color for the base and blink, just repeat it in both tabs.

Text size You can enter the size of the text in pixels, remember that the text must be readable from afar.

Text Alignment You can choose how to place the text horizontally in the ticket box (left, right and centered)

Rounding Size You can set the radius of the rounding in pixel, the rounding being the corner of the tickets displayed on the screen. If you want a square corner, you will have to indicate 0.

Width the width indication is in percentage of the screen width, but to be more precise, this is advantage of the web area width in zebrix. So if the screen width is physically 100% and the web area in the page represents 50%, a 100% width in the QMS will represent 50% of the physical width of the screen.

Display text on two lines When the texts of the skills to be chosen are very long, you can choose to specify them on two lines.

URL This url contains the web address of the display, copy the address in the clipboard. and paste it on zebrix in the web area of the page that you will display on the call screen.

The terminal configuration concerns the terminal through which the user can request a ticket. For this one, you can configure the color of the bottom of the buttons as well as the typo, we can also configure the bottom of the buttons at the press. Also, you can configure the color and size of the call phrase.

The Ticket number display time allows you to configure the display duration in seconds. The Show estimated wait time box displays a wait time based on the average time between previous tickets. Finally, the box Display the number of people in front of the ticket holder displays the number of active tickets before the last ticket taken

Allows you to customize the skill selection buttons present on the screen.

Background color

1. Base: allows you to choose the color usually visible on the terminal buttons
2. With the click: allows you to choose the effect color of the button once pressed.

Text colour Lets you choose a color for the button text.

Tip: Always consider the readability of the text, so choose a color that contrasts well with the background.

Rounding Size You can define in pixel the radius of the rounding, the rounding being the corner of the buttons. If you want a square corner, you will have to indicate 0.

Text size: Allows you to choose the size of the text, taking into account that the text must be sufficiently readable for visually impaired people.

Left margin of “Request a ticket” button Adjusts the size of the left margin

Top margin of “Request a ticket Adjusts the size of the margin

Display “skill” icon By clicking on the box an icon will be displayed in front of each skill.

Display help text: check box displays a phrase above the ticket request buttons.

Help Text: Enter the phrase that will be present above the ticket request buttons. This text should be able to explain why to take a ticket.

Text colour Lets you choose a color for the button text.

Text size Allows you to choose the size of the text, taking into account that the text must be sufficiently readable for visually impaired people.

The ticket obtained is the result of the user pressing the desired skill. This ticket will indicate the number of the user (who will be called by the counter on the screen present in room) the number of people before him at the moment when he pressed the order and the average waiting time before his passage in front of the counter. This time is calculated on the experience of processing previous tickets.

You can customize the display of the ticket, it is advisable to take contrasting colors for the background and the text (nevertheless, the color customization will not be applied on the paper ticket printed in black and white):

Background color: allows you to choose the ticket background color

Text color: allows you to choose the text color.

Text size: allows you to choose the size of the text, taking into account that the text must be sufficiently readable for visually impaired people.

Display the ticket icon: check the box to display a cinema ticket icon.

The result is a url corresponding to the customization settings previously entered. You can copy this url into a web area of a page on zebrix and display the page on the ticket taking terminal.

To change your password, simply click on your login and then on My profile like this:

In order to log out of the interface, you must click on your login and then on Log out like this:
