SSO implementation in zebrix with Azure AD (Office 365)

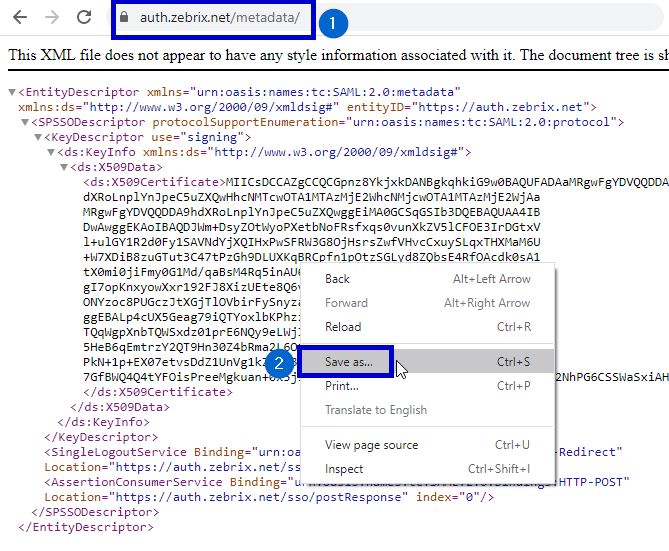

Surf on https://auth.zebrix.net/metadata
Right click and save the file to a file with .xml extension

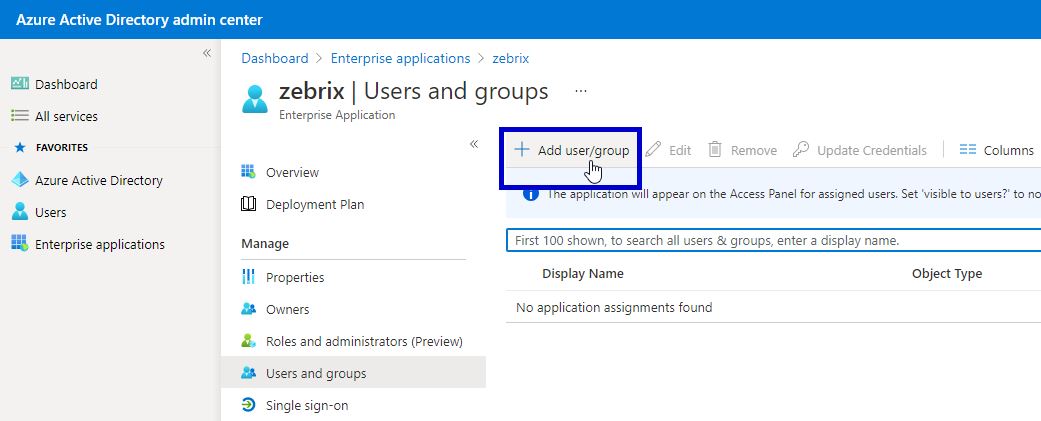

Choose which groups/users will be allowed to login

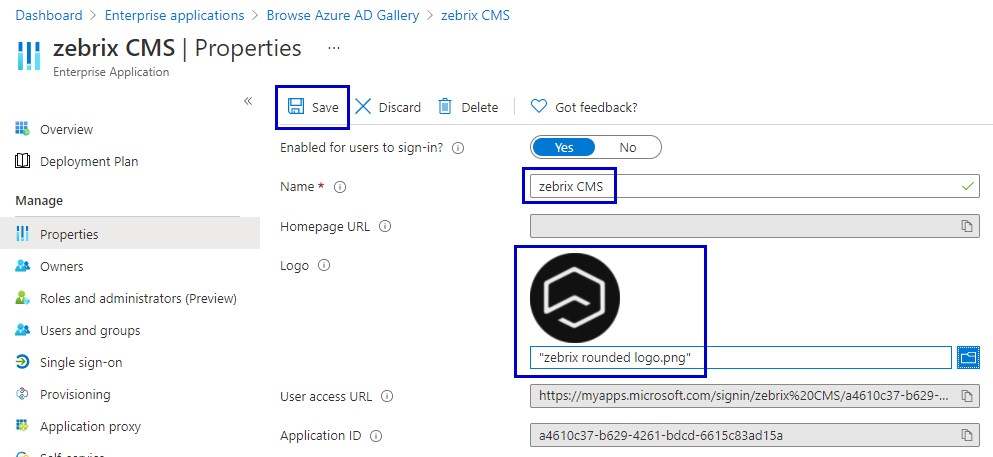

In the "Properties" section, set the zebrix logo

Save the following logo file

and upload it in the configuration

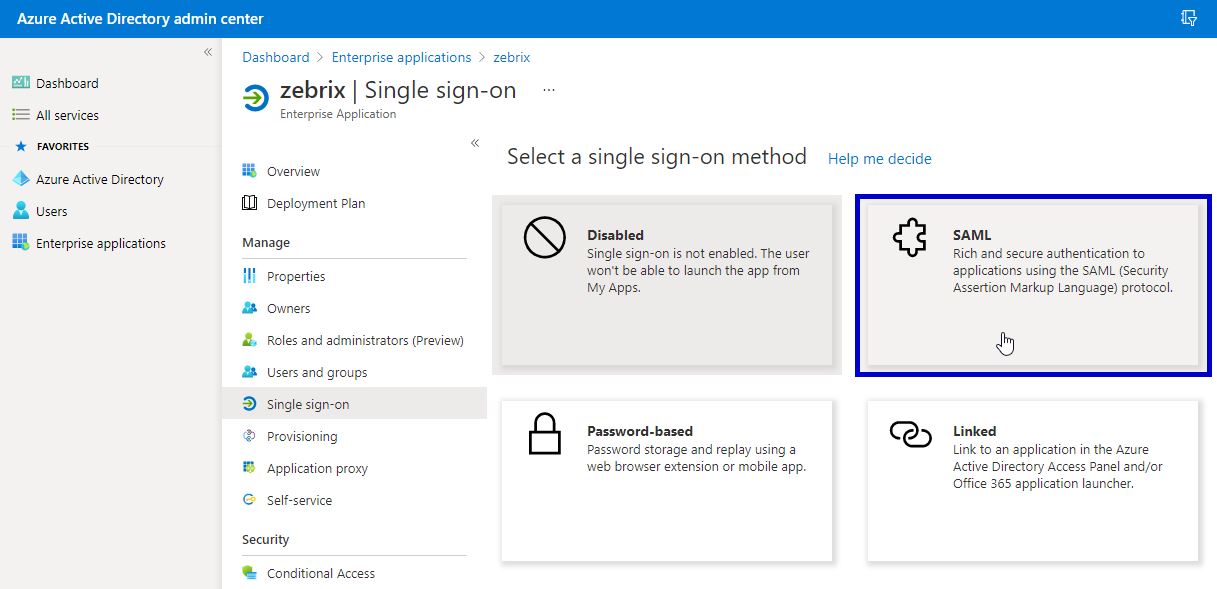

In the "Single Sign-on" section, configure the SSO: choose SAML

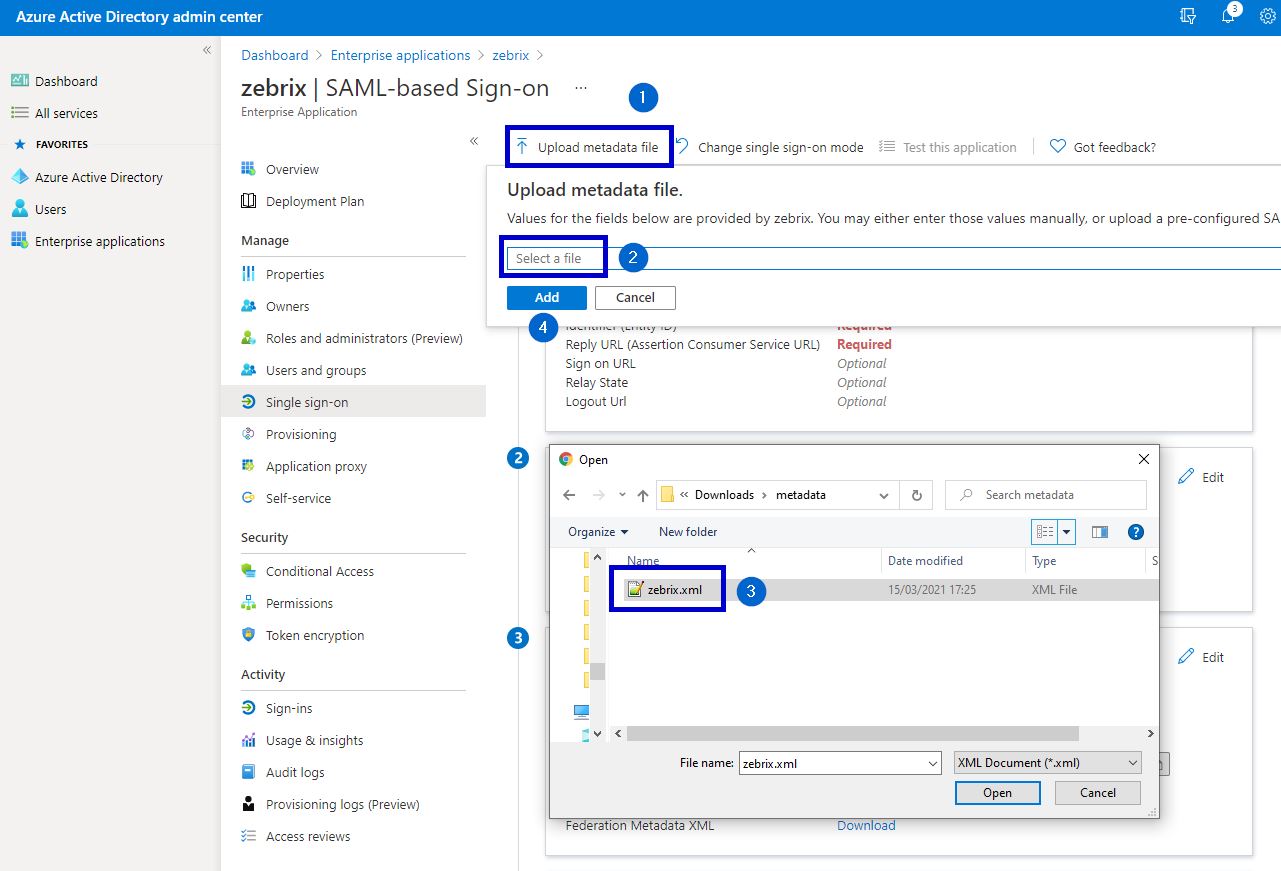

Upload the XML metadata file that has been previously downloaded

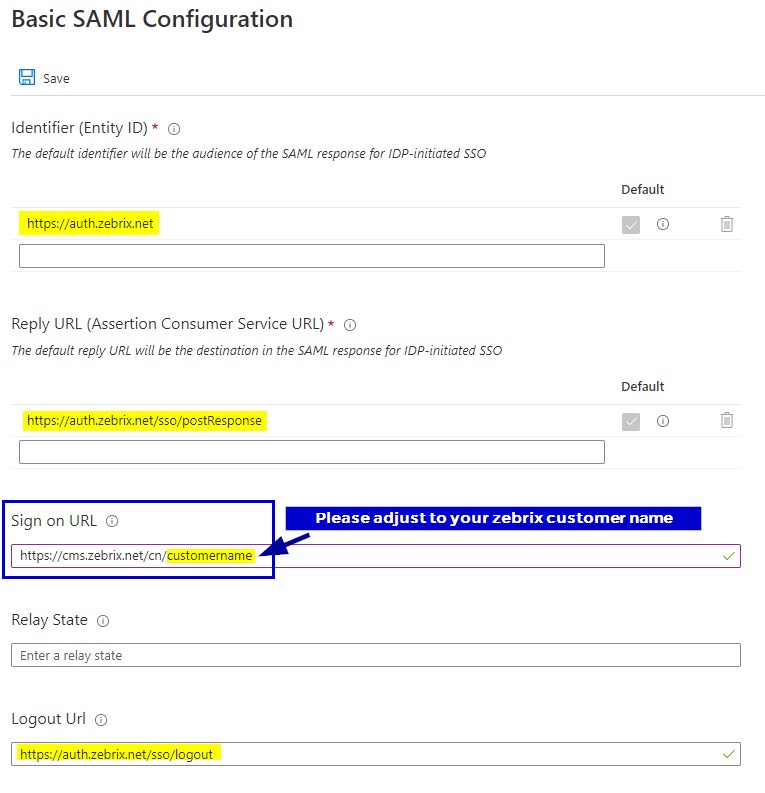

Add a "Sign On URL" and save the basic SAML configuration

Some fields will be prefilled thanks to the imported .XML file, but the “Sign On URL” needs to be filled manually. Please specify the following URL: https://cms.zebrix.net/cn/customername (please replace customername with your actual customer name on zebrix)

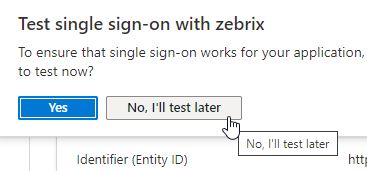

Skip SSO login test

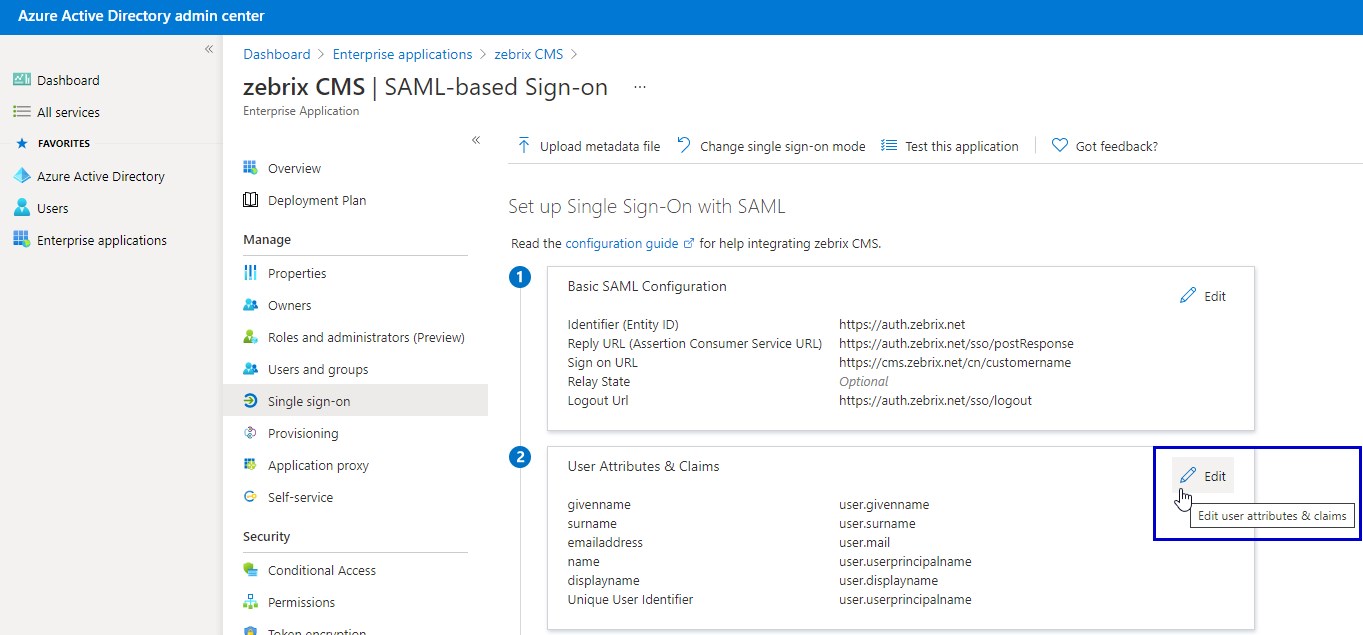

Edit User attributes and claims

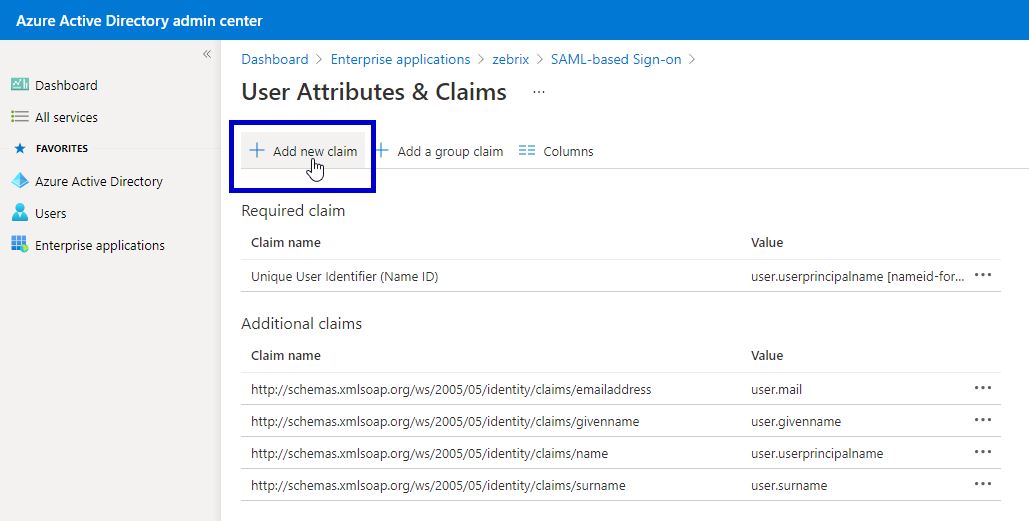

Add a new claim

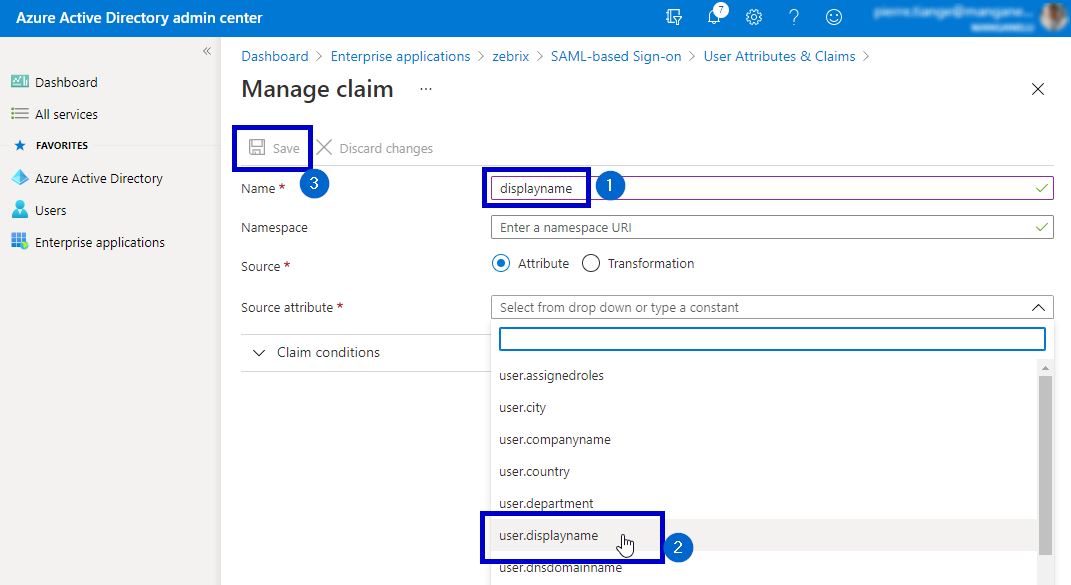

Use displayname as name
In the name space field please copy / paste the following namespace http://schemas.xmlsoap.org/ws/2005/05/identity/claims
In the dropdown list, select the value user.displayname
Press the Save button

Option 1: using the "sign on URL"

https://cms.zebrix.net/cn/customername

Accessing to this URL will trigger the “Single Sign On” verification process and you'll be either directly logged in to zebrix or you'll be redirected to the Microsoft authentication portal.

You can save this URL in your bookmarks.

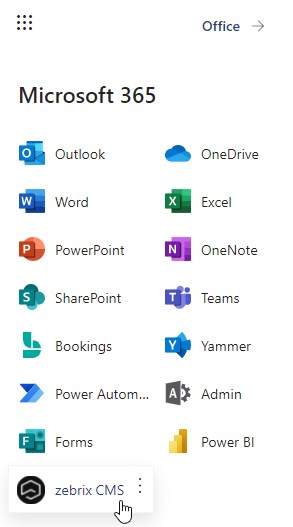

Option 2: you can use the "zebrix" application shortcut icon in your Office 365 portal

Please have a look to this page.

SSO implementation in zebrix with Azure AD (Office 365)

Save zebrix metadata in a file

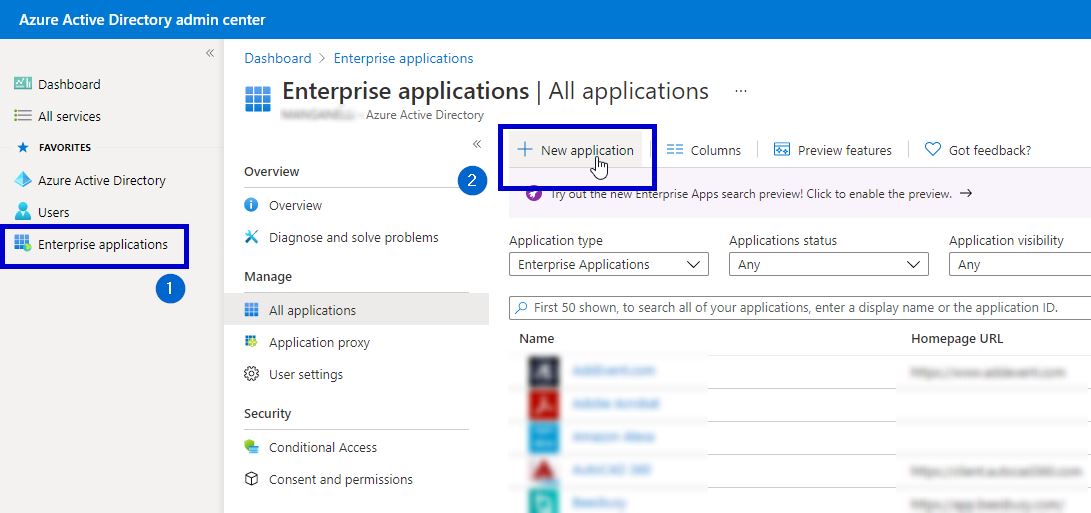

In the Azure AD admin center, add a new app

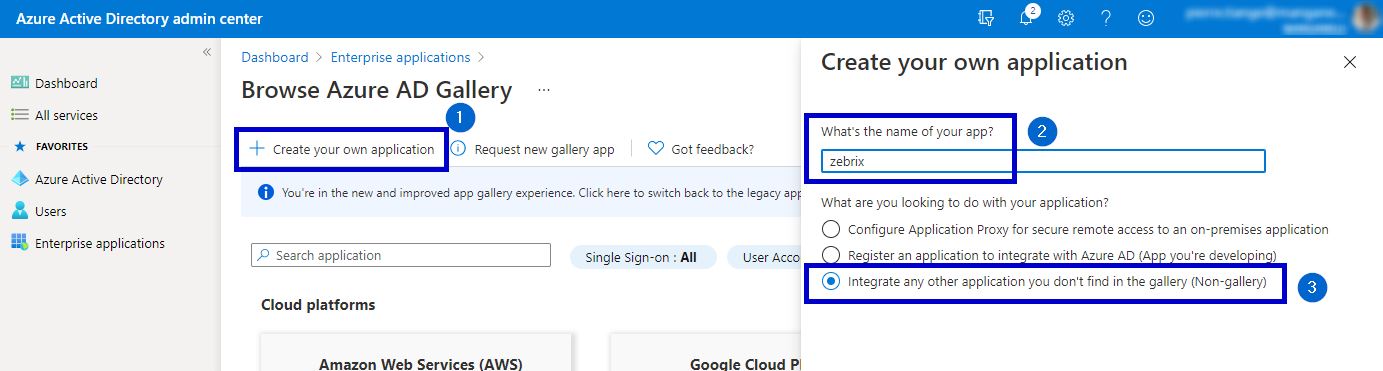

Create a new app using these options and call it "zebrix" or "zebrix CMS"

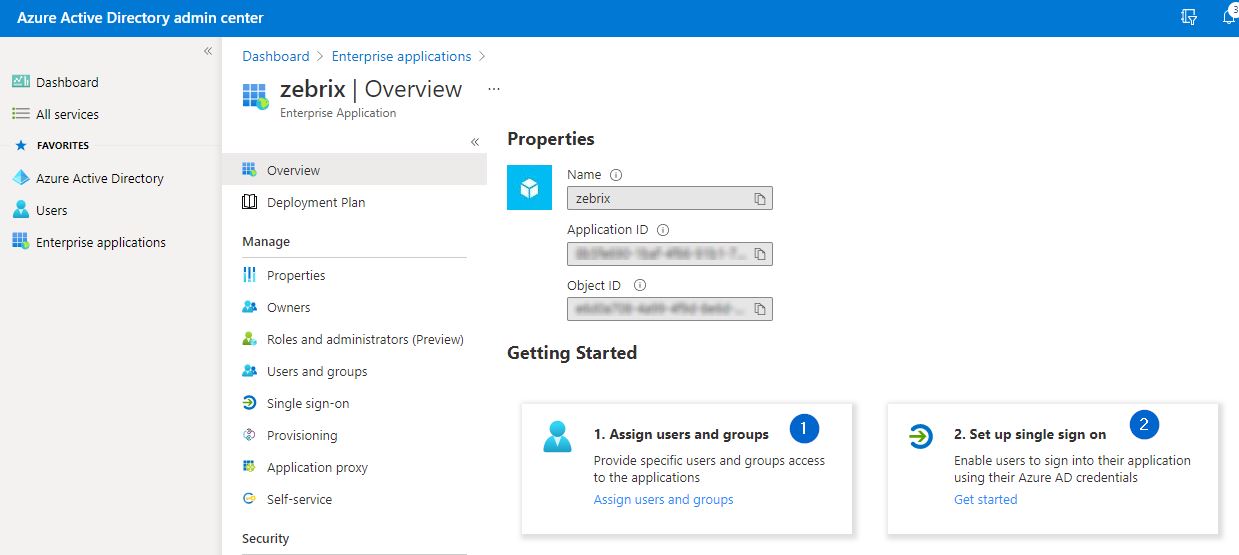

zebrix overview
